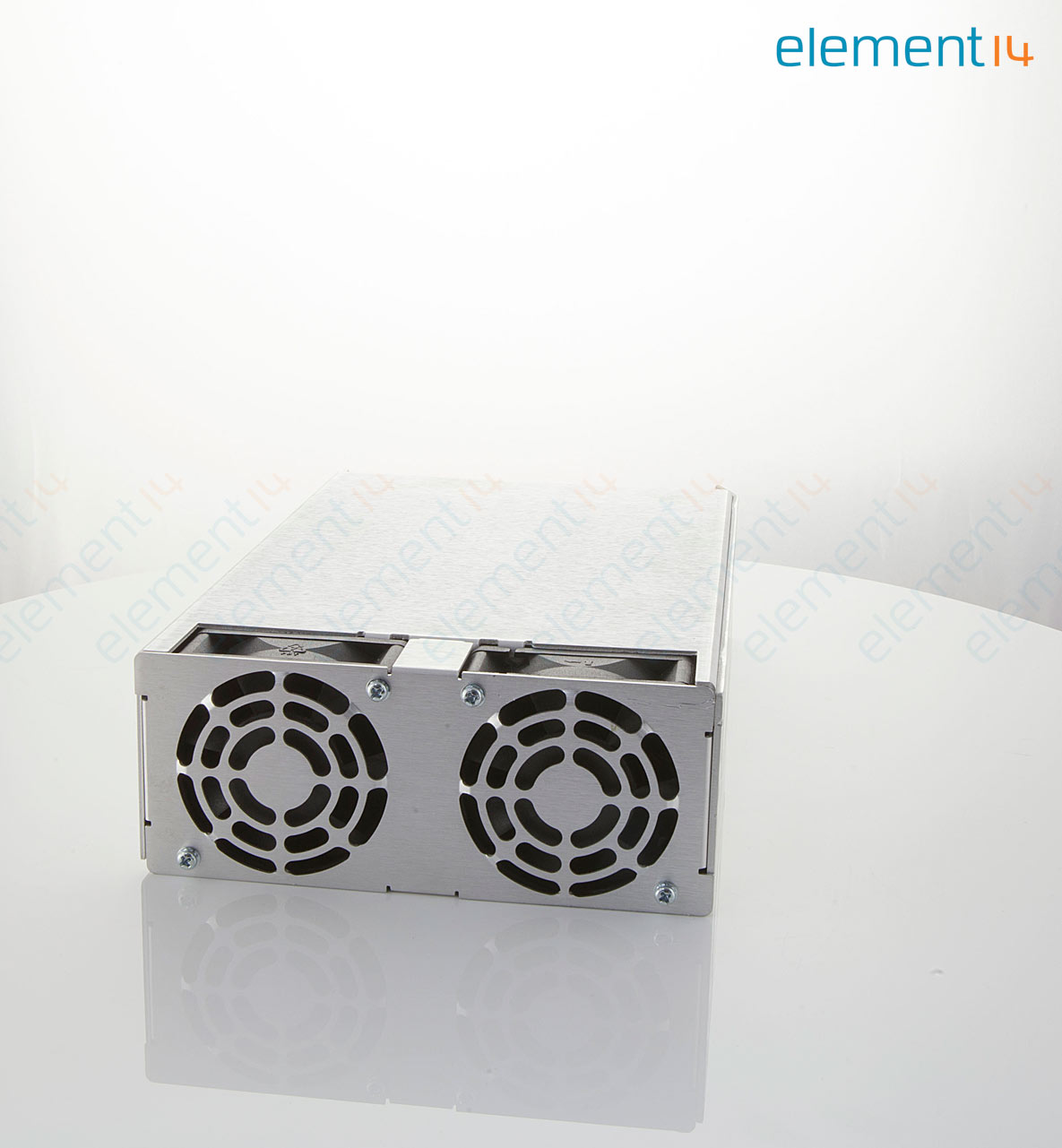

XP POWER SHP1000PS48
AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 1.013 kW, 48 VDC, 21 A
- Manufacturer:
- XP POWER XP POWER
- Manufacturer Part No:
- SHP1000PS48
- Order Code:
- 1821492
-
- Product Range
- SHP Series
- Technical Datasheet:
- SHP1000PS48 Datasheet
- ECAD / MCAD
-
Product Range Selector (SHP Series)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- ITE
- :
- 1Outputs
- :
- 1.013kW
- :
- 48VDC
- :
- 21A
- :
- -
- :
- -
- :
- -
- :
- -
- :
- -
- :
- -
- :
- 85V AC to 264V AC
- :
- Adjustable, Fixed
- :
- SHP Series
Technical Documents (4)
Product Overview
SHP1000PS48 is a SHP series AC-DC power supply provides up to 1200W of output power, it is forced air cooled via integral multi voltage level fan which is load dependent. 5VDC/1A standby supply which can be utilised with the signals and control features of the unit to provide detection of loss of AC input and remote on/off control. Multiple units can used in parallel via the current share facility, providing higher power solutions. Low earth leakage current, and conducted EMC compliance to Class B also simplify higher power system design. It includes overvoltage, overload, overtemperature, short circuit protection. Certified by IEC60950-1:2005 Ed 2 / IEC62368-1:2014, UL 62368-1 and CAN/CSA C22.2 No. 62368-1-14, EN62368-1:2014/A11:2017, SEMI F47.
- Typical input voltage is 24V, output voltage 1 is 12V, output current 1 is 60mA (nominal)
- Typical efficiency is 85%
- Rugged industrial construction, variable fan speed for noise reduction
- AC OK, remote on/off and active current share, switching frequency is 70KHz (PFC)
- 5V standby, screw terminals
- Isolation is 3000VAC (input to output)
- 3 year warranty
- Operating temperature range from -20 to +70°C
