607-1212-120F

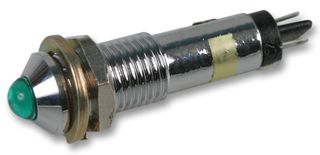

LED Panel Mount Indicator, Green, 6 VDC, 7.2 mm, 15 mA, 50 mcd, IP66
Image is for illustrative purposes only. Please refer to product description.
ManufacturerDIALIGHT
Manufacturer Part No607-1212-120F
Order Code1138334
Your Part Number
Technical Datasheet
111 In Stock
Need more?
111 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | S$11.630 (S$12.6767) |
| 5+ | S$9.480 (S$10.3332) |
| 10+ | S$7.330 (S$7.9897) |
| 20+ | S$7.190 (S$7.8371) |
| 50+ | S$7.040 (S$7.6736) |
Price for:Each
Minimum: 1
Multiple: 1
S$11.63 (S$12.68 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Overview
The 607-1212-120F is a green panel-mount LED Indicator made of chrome-plated brass housing. The low power consumption uses up to 90% less energy than an incandescent indicator.
- No heat generated
- Electrical connection through solder terminals
- Watertight seal from front of panel meets NEMA-4X/IP66
- Long life, lasting up to 100K hours
- -30 to 85°C Operating temperature range
Applications
Industrial, Signalling
Technical Specifications
LED Colour
Green
Mounting Hole Dia
7.2mm
Luminous Intensity
50mcd
Product Range
-
Operating Voltage
6VDC
Forward Current If
15mA
IP / NEMA Rating
IP66
SVHC
No SVHC (25-Jun-2025)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
Tariff No:85312020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.003856
